Woodlands 2010 BS153 PN16
Ductile Iron Resilient Seal Swing Check Valve
• This valve is design and manufactured according to 855153
• Working pressure: 16kg/cm²
• Shell test pressure: 24kg/cm²
• Seat test pressure: 18kg/cm²
• Media: Water, neutral oil
• Working temperature: 0.6-52°C
• External and Internal coating:
100% fusion-bonded epoxy
• Flange drilled according to 854504 Table 10/11, 16/11; EN1092 PN10, PN16

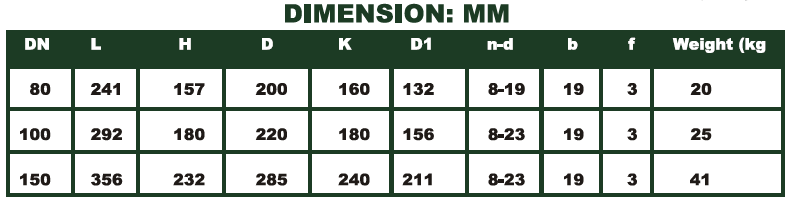

Dimension: MM

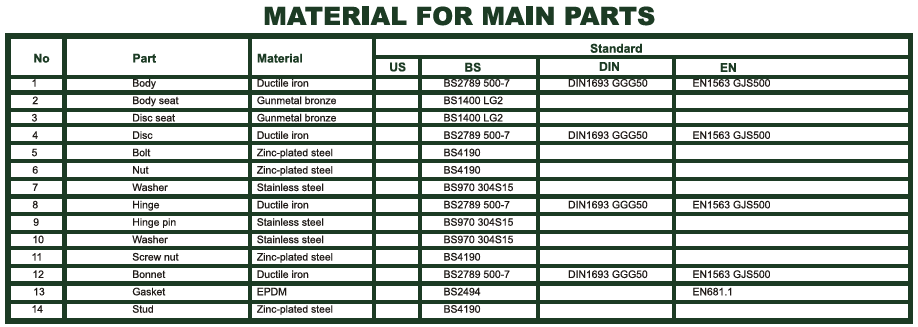

Material for Main Parts
